| الاسم التجاري: | BOE |
| رقم الطراز: | DV430FHM-NN5 |
| الـ MOQ: | 10 قطعة |
| السعر: | negotiable |
| تفاصيل التعبئة: | التعبئة الصناعية |
| شروط الدفع: | T/T ، W ، Western Union ، Moneygram |

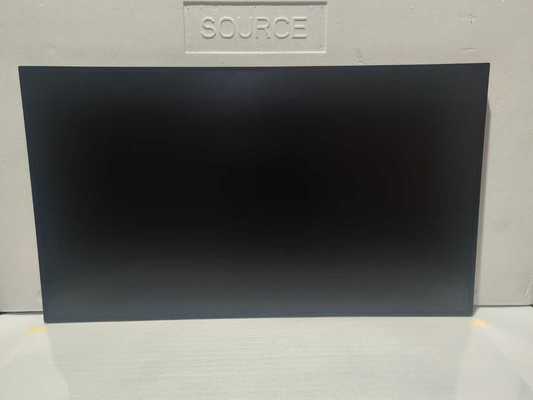

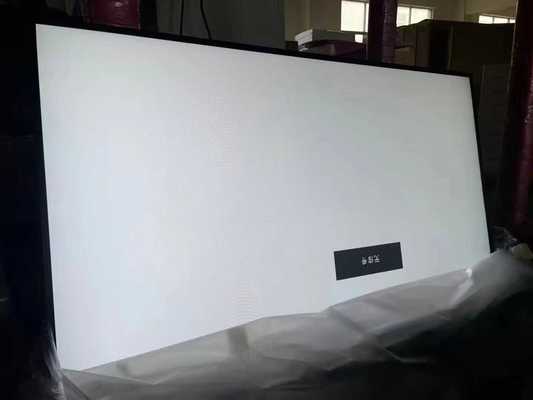

BOE 43Inch Outdoor high brightness lcd panel DV430FHM-NN5 700CCD / M2 51PPI 1920*1080Pixels 51pin connector
DV430FHM-NN5 is a 43" diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by einklcd in the following: Landscape / Portrait, Hight Brightness, WLED Backlight, With LED Driver, Reverse I/F, Matte , Narrow bezel, Support display horizontally or vertically, Use 7*24hr. Based on its features, einklcd recommend that this model be applied to Digital Signage, Outdoor High Brightness etc. According to the information stored in einklcd this model mass production on Q1, 2021, Now this model is in production. We inputted this model's specification on Feb 25 2021 for the first time, and the latest update on Sep 11 2023. If you want to embed the LCM in your future product, einklcd strongly recommend that you should contact with BOE or it's agent to learn lateast production and specification detail of DV430FHM-NN5. The production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.
Brand:BOE
Model P/N: DV430FHM-NN5
Diagonal Size: 43"
Panel Type:a-Si TFT-LCD, LCM
Resolution 1920(RGB)×1080, FHD 51PPI
Pixel Format: RGB Vertical Stripe
Active Area 940.896(W)×529.254(H) mm
Bezel Opening 943.896(W)×532.25(H) mm
Outline (mm) 961.7×550.1×32.4 (H×V×D)
Treatment: Antiglare (Haze 25%)
Luminance: 700 cd/m² (Typ.)
Contrast Ratio:1200 : 1 (Typ.) (TM)
Viewing Angle: 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down
Response: 8 (Typ.)(G to G) ms
Good View at Symmetry
Work Mode: ADS, Normally Black, Transmissive
Color Depth: 16.7M 72% NTSC
Backlight: WLED , 30K hours , With LED Driver
Mass: 8.36Kgs (Typ.)
Used for: Digital Signage ,Outdoor High Brightness.
Refresh: Rate60Hz
120Hz (60HZ Input) : Embedded MEMC Circuit
120Hz+120Hz : 120Hz Panel+120Hz Backlight
240Hz (60HZ Input) : Embedded MEMC Circuit
Touchscreen: Without
Signal Type: LVDS (2 ch, 8-bit) , Connector: 51 pins
Voltage Supply: 12.0V (Typ.)
Max. RatingsStorage Temp.: -20 ~ 60 °C
Operating Temp.: 0 ~ 50 °C
|
|
