| الاسم التجاري: | eink |
| رقم الطراز: | WF154 |
| الـ MOQ: | 10 قطعة |
| السعر: | negotiable |
| شروط الدفع: | T/T ، W ، Western Union ، Moneygram |
| Supply Ability: | 3000pcs في الأسبوع |

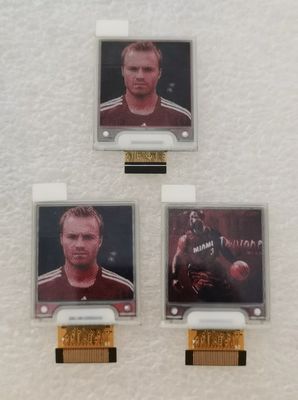

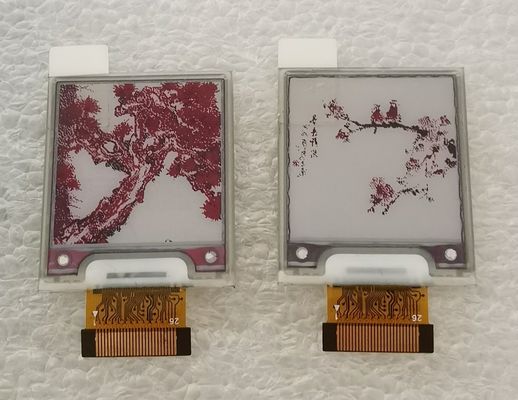

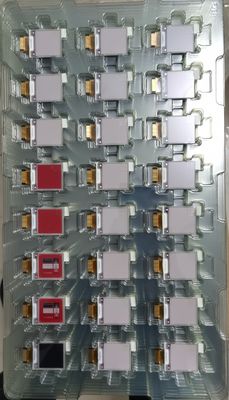

This is a 3-Colors 1.54” a-Si, active matrix TFT, Electronic Paper Display (EPD) panel.
The panel is capable to show Black, White, and Red. The panel has high resolution
(140dpi) that it is able to easily display fine patterns. Due to its bi-stable nature, the
EPD panel requires very little power to update and needs no power to maintain an
image.
1.2 Features
- a-Si TFT active matrix Electronic Paper Display(EPD)
- Three colors support: White, Black, Red
- Resolution: 152 x 152
- Ultra-low power consumption
- Super Wide Viewing Angle - near 180°
- Extra thin & light
- SPI interface
- RoHS compliant
1.3 Applications
- Electronic shelf label (ESL)
- Reusable container
- Badge
